About Bale Trailers

The PK Sales Bale trailer range features high specifications as standard making it the ideal transport solution for farmers and contractors who are looking at future agricultural haulage solutions. Currently available in 28ft, 32ft and 36ft. Also, with a range of optional extras, this trailer is ideal for bale haulage and is suitable for daily use on the farm or in an industrial environment.

Farmers and contractors looking to improve farm haulage and transport logistics need to look no further than PK Sales’ Proline range of flatbed trailers. These reliable bale trailers are available in 28ft, 32ft and 36ft lengths together with a range of optional extras which can be specified to match the customer’s exact requirements.

The PK Sales Proline range of trailers are built to a high standard specification to suit the needs of modern farmers and contractors. In addition to the standard specification, PK Sales offers a wide range of manufacturer-supplied and fitted options which can be specified to match the customer’s exact requirements.

Standard Features

Bolt on fixed hitch

Sprung drawbar

LED road lights c/w flashing side indicators and rear flashing beacon

10 stud commercial axle 127mm round c/w 420 x 180 brakes

16T 100mm multi leaf suspension

Air brakes c/w load sensing valve

Oil brakes including slack adjusters

445/45 R19.5 NEW double coin

Steel bolt on mud guards including rubber spray flaps

Bolt on plastic number plate holder including lights

Strap Box

T4mm chequer floor plate

Rear bolt on bumper bar

Rachet handbrake

Optional Extras

Front & rear bale ladders

K80 spoon or swivel hitch

ABS brakes

Rear hitch & electrics

Rear braking ancillaries

560/60 R22.5 BKT FL693 tyres

Work lights

Rear steering axles (passive or active)

Welded tool tray

4ft retractable extension

Reflective white, yellow and red tape

Choice of paint colour as finish

Product Specifications



Bed length (mm/ft) 10370 11590 12700
Design capacity (kg) 16,000 16,000 16,000
Axle track width (mm) 2,000 2,000 2,000
Axle beam (mm) 127 round 127 round 127 round
Brake size (mm) 420 x 180 420 x 180 420 x 180
Axle springs – no. of leaves/leaf size (mm) 6/100 x 15 6/100 x 15 6/100 x 15
Floor material Chequered plate 4.5mm Chequered plate 4.5mm Chequered plate 4.5mm
Floor bearer size (mm) 60 x 40 x 4 60 x 40 x 4 60 x 40 x 4
Floor bearer spacing (mm) 400 400 400
Chassis size (mm) 203 x 133 x 30 203 x 133 x 30 203 x 133 x 30




A Range of Optional Extras

4ft extension

ABS Brakes

Swivel or Spoon Hitch

Air Only Spring Brakes

Rear LED Beacon

Fixed Drawbar

Load and Go Frame

Optional Extra

A popular optional extra for our bale trailer is our load and go frame which allows easy transport of bales.


Quick release bolt-on frame for removing for other jobs

Heavy duty box section frame

Twin ram hydraulic side to clear bales

3 sided fixed frame for quick loading

Horizontal bars can be positioned to suit ANY bale size

Safety and speed at its best

Every load is secure

Can be fitted to any trailer make

Load and go frame for Bale trailer fully loaded in open position

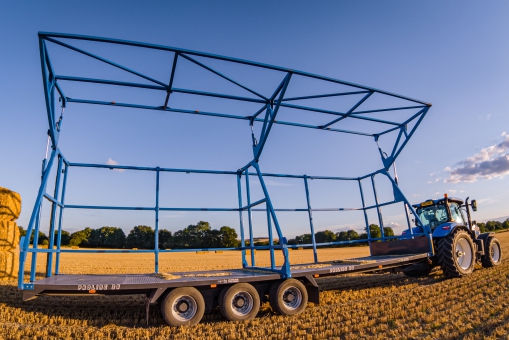

Load and go frame in open position
Load and go frame fully loaded with hay

Load and Go Trailer

© Peter Hill

Read how an Oxfordshire farmer used the Load and Go trailer to gather bales faster and safer and ultimately to help improve cow health.
